PLB256: Protea LiFePO4 Battery 2.56kwh 25.6V
Main Features:
Plus/minus 15 years Design Life
Excellent Charging and Discharging
Integrated Battery Management System (BMS)
with current limiting function
Built in protection against over-charge,
over-discharge and over-heating.
Low Self Discharge rate
High Energy Density and conversion efficiency
Great performance at high temperatures
CAN Bus port & battery link ports seamlessly
communicate with leading inverter brands
Simple & neat wall mount installation
CE and UN38.3 Certified.

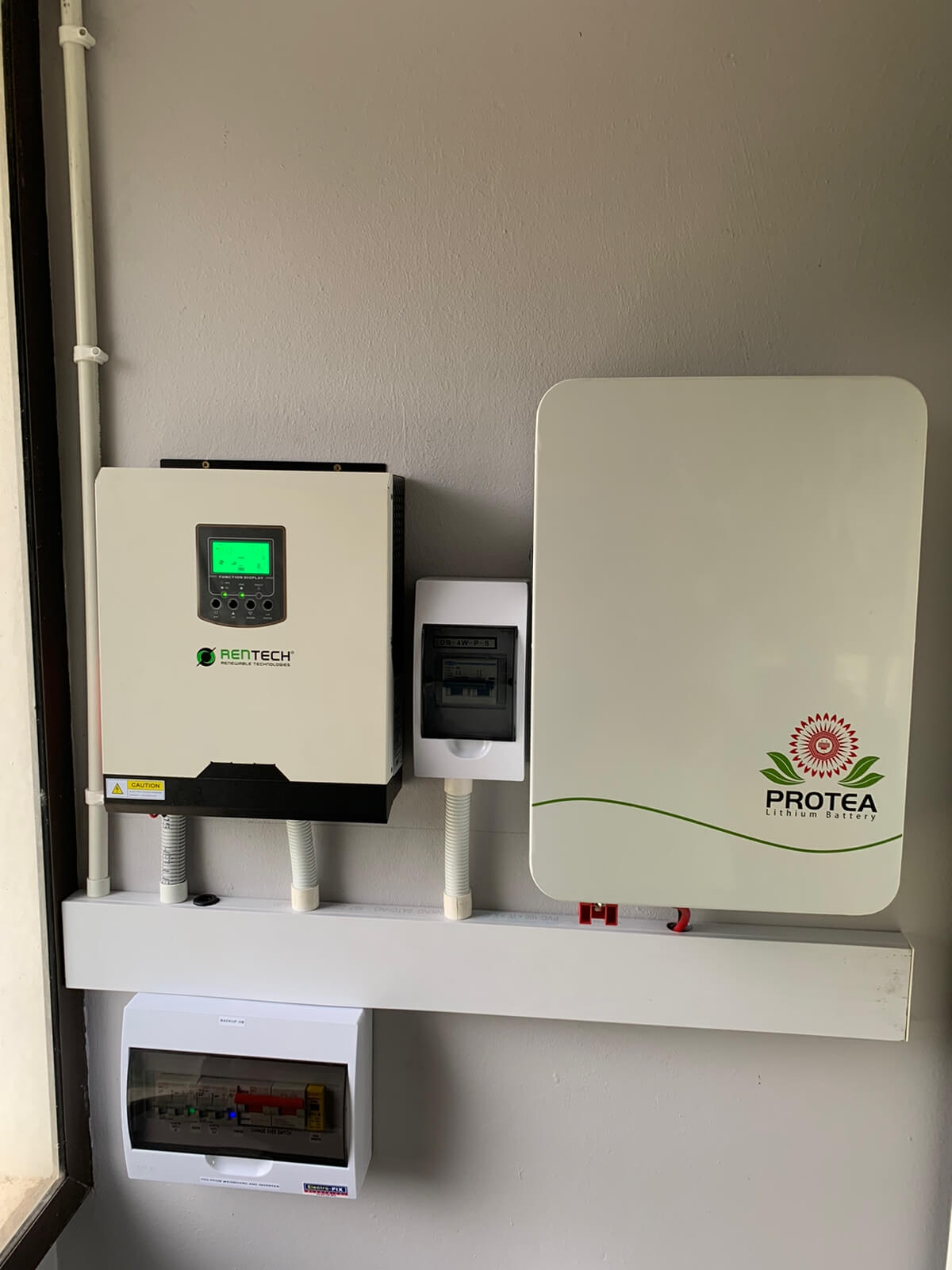

PLB256 installation by “In House Solar”
PLB256 installation done by “Instrusol”
Product Paramaters:
| Item | SPECIFICATIONS |
|---|---|
| Model | PLB256 |
| Rated Capacity | 100Ah |
| Nominal Voltage | 25.6V |
| Design Capacity | 2.56KWH |
| Equalized Charge Voltage | 29.2V |
| Float Charge Voltage | 27.2V |
| Max.Continuous Charging Current | 100A |
| Max.Continuous Discharging Current | 100A |
| Max C Rating | 1C |
| Monitoring | WIFI/WEB |
| Parallel | Parallel Connection up to 15 packs with full communications |

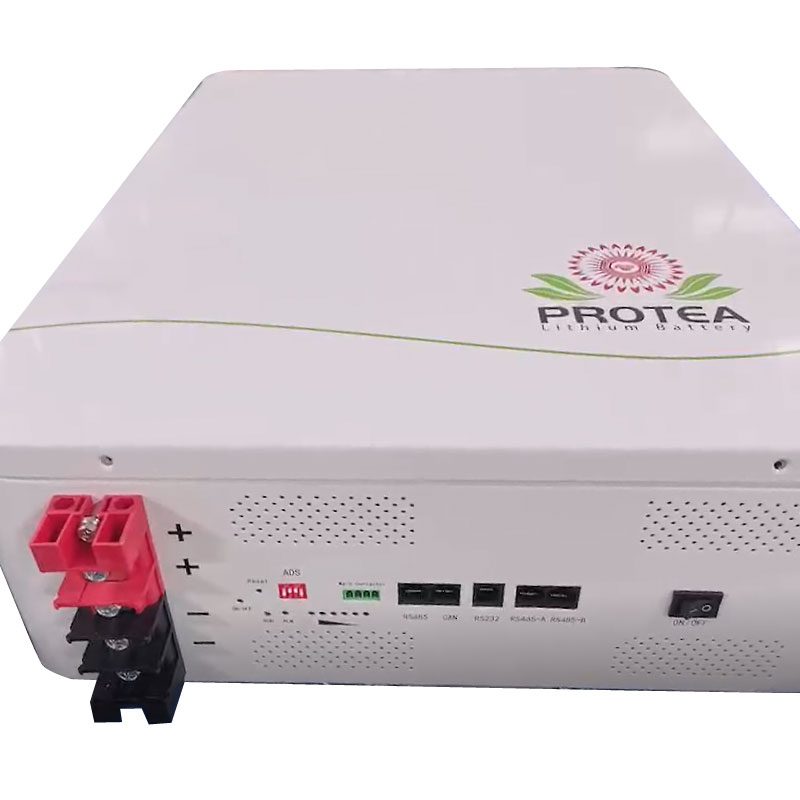

| Ports | 1x CAN-Bus, 3xRS485, 1xRS232 |
| Cells | Prismatic LiFePO4 |
| Design Life | +/-15 Years |
| Cycle Life | Above 6000 cycles @80% DOD, +/-3500 cycles @100% DOD |
| Certification | CE/UN38.3 / MSDS |
| Purer Package Material | White bake lacquer steel case |
| Operating Temperature | Charging: 0 to +55°C | Humidity :15% to 75% | Storage: 10 to +50°C |
| Protection | Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting |
| Weight | Approx. 26.9kg |

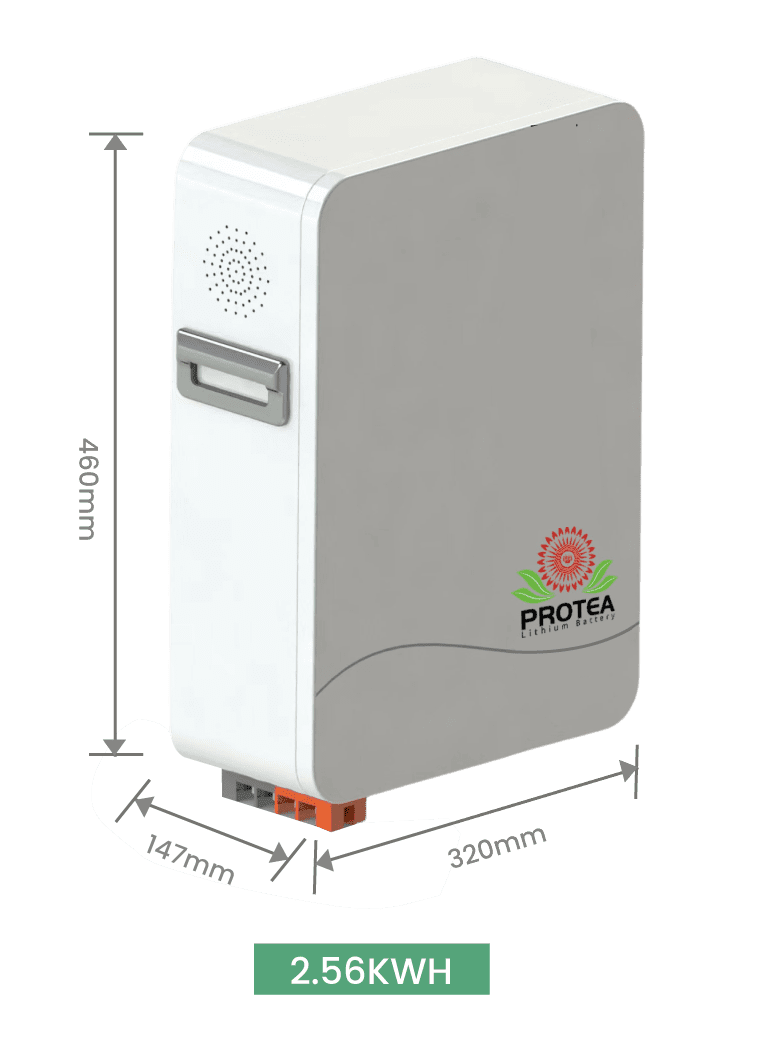

| Dimensions (W*D*H)mm | 320mm X 460mm X 147mm |
