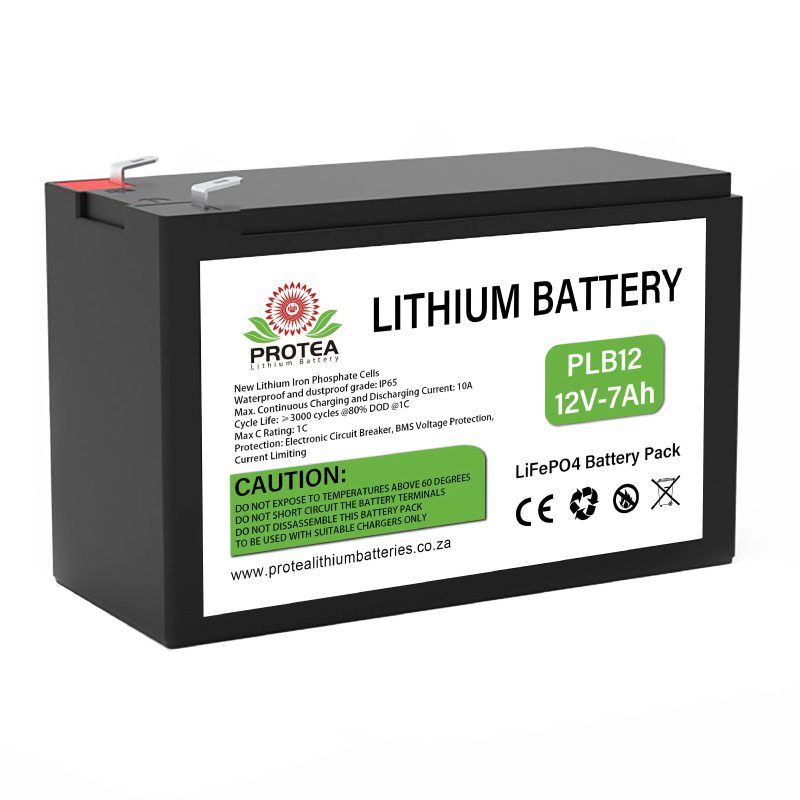

PLB12: Protea LiFePO4 battery 12V 7Ah
Discover the Efficiency and Portability of 12V 7Ah Lithium Batteries!”
Perfect for a wide range of applications, such as Alarm Systems, Gate Motors, Garage motors etc. These lithium batteries deliver efficiency and performance in a compact package.
Main Features:
New Lithium Iron Phosphate Cells
Waterproof and dustproof grade: IP65
Max. Continuous Charging and Discharging
Cycle Life: 3000 cycles @100% DOD @1C
Max C Rating: 1C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Product Paramaters:
| ITEM | SPECIFICATIONS |
|---|---|
| Model | PLB12 |
| Rated Capacity | 7Ah |
| Nominal Voltage | 12.8V |
| Design Capacity | 89.6Wh |
| Equalized Charge Voltage | 14.6V |
| Float Charge Voltage | 13.6V |
| Max.Continuous Charging Current | 10A |
| Max.Continuous Discharging Current | 10A |
| Max C Rating | 1C |
| Expansion | Maximum 4S4P |
| Cells | LiFePO4 |
| Design Life | +/-10 Years |
| Cycle Life | Above 3000 cycles @100% DOD |
| Certification | CE/UN38.3/MSDS |
| Package Material | Plastic case |
| Operating Temperature | Charging: 0 to +55°C Humidity: 15% to 75% Storage: 10 to +50°C |
| Protection | Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting |
| Weight | Approx. 0.9kg |
| Dimensions (W*D*H)mm | 151mm X 94mm X 65mm |
